To install a keyboard tray mouse platform, start by removing the front stopper and positioning the rail with bumpers facing back, keeping a 1.2-inch gap from the desk edge. Mark and drill six pilot holes, then slide the rail onto screws and tighten. Attach the tray and mouse platform, adjusting height and angle for comfort. Secure all bolts and clips, organize cables, and add covers. For detailed steps on perfecting your setup, keep exploring the process.

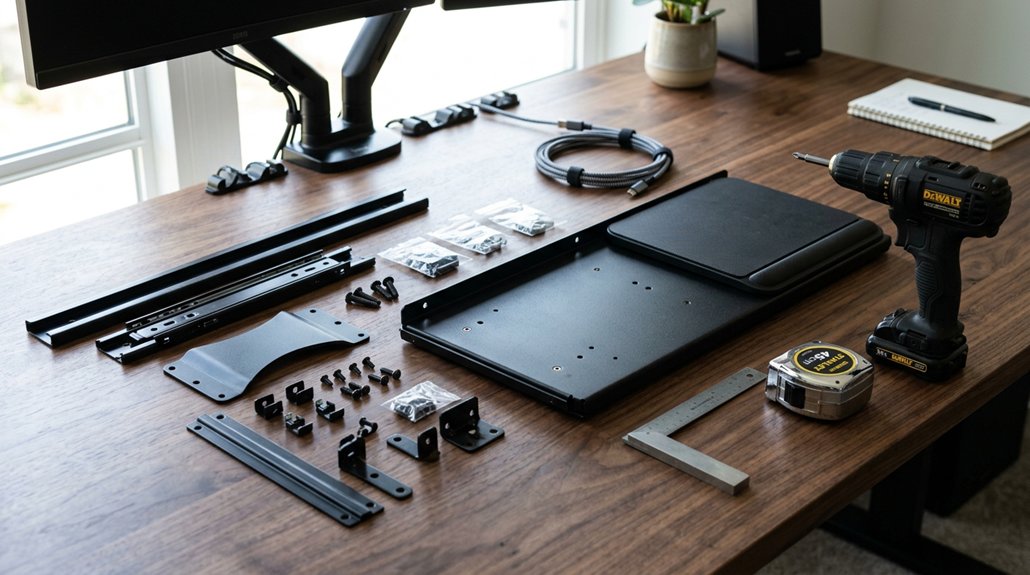

How to Prepare Your Desk for a Keyboard Tray Installation
Before installing your keyboard tray, you need to prepare your desk properly. Start by removing the front stopper of the tray by unbolting the two bolts at the front end of the plate.
Position the rail with the bumpers facing toward the back of the desk, securing a 1.2-inch gap between the front edge of your desk and the rail plate for proper alignment. Use a pencil to mark the six hole locations through the rail plate on your desk surface.
Position the rail with bumpers facing back, leaving a 1.2-inch gap for proper alignment.
Before drilling, remove the rail plate to confirm accurate placement of your pilot holes. Once installed, you’ll be able to adjust the tray for comfort and ergonomic positioning.
Proper preparation guarantees the tray fits securely and functions smoothly, making your workspace more efficient and comfortable.
Choosing the Best Keyboard Tray and Mouse Platform for Your Setup
To find the best keyboard tray and mouse platform, you need to take into account your desk’s size and guarantee there’s at least a 1.2-inch gap from the edge for proper installation.
Look for adjustable height and angle features that let you customize your comfort, and pick a sturdy tray with a smooth sliding action for easy access.
Additionally, confirming the mounting system compatibility with your desk’s thickness and edges will ensure a secure fit and optimal functionality.
Don’t forget to check if the platform includes helpful accessories like cable clips or a dedicated mousepad area for an organized workspace.
Compatibility With Desk
Selecting a keyboard tray and mouse platform that suit your desk begins with checking compatibility. Measure your desk’s thickness to guarantee the tray’s mounting system fits—most require at least 1.2 inches of front edge clearance for proper installation.
Choose a keyboard tray that provides enough width and depth to hold your keyboard and mouse comfortably, allowing ergonomic movement. Verify the mounting method—clamp or rail—to secure stable attachment without damaging your desk surface. Additionally, select a mouse platform that can be attached on either side of the keyboard, accommodating your dominant hand and workspace layout.
Confirm the tray allows smooth sliding, height adjustment, and locking features, so your setup remains stable and ergonomic throughout your workday. Range of motion and ergonomic features are critical in ensuring your workspace reduces strain and enhances comfort.
Adjustable Features and Comfort
Choosing a keyboard tray and mouse platform with adjustable features can greatly enhance your comfort and ergonomics. Opt for a tray with adjustable height and tilt settings to customize your workspace, reducing wrist strain during long typing sessions.
A versatile mouse platform that can be positioned on either side of the tray accommodates your hand dominance and reaching preferences. Look for trays with smooth sliding mechanisms and secure latch controls to make repositioning effortless and keep everything stable once set.
Select sizes that comfortably fit your keyboard and mouse while maintaining about a 1.2-inch gap from the desk edge, supporting proper wrist posture. Additionally, sliding drawer mechanisms help organize wires, preventing clutter and creating a cleaner, more comfortable workspace.
Mounting the Rail and Plate Step-by-Step
Start by removing the front stopper and positioning the rail on your desk with the bumpers toward the back, leaving a 1.2-inch gap from the edge.
Next, mark six holes on the desk through the rail plate, then drill pilot holes at those spots.
Finally, attach the rail plate by inserting two screws into key-shaped holes first, then slide the plate onto these screws and secure all six tightly.
Also, ensure that the tilt mechanism can be locked into place securely for ergonomic positioning to maintain a healthy wrist and hand posture.
Mark and Drill Holes
Position the rail plate on your desk with the bumpers facing toward the back, maintaining a 1.2-inch gap between the front edge of the desk and the plate. Use a pencil to mark six hole locations through the plate onto your desk surface before removing it. This guarantees accurate placement.
Next, drill pilot holes at each marked spot using a 3/20 inch drill bit, preparing for the screws. Start by installing two screws into the key-shaped hole marks, leaving a 0.5 cm gap between the screw heads and the desk surface. This gap allows the rail plate to slide smoothly.
Be sure to verify the installation compatibility of your desk surface to ensure the adhesive or clamp method is suitable for your setup.
Finally, slide the rail onto these screws, then insert and tighten all six screws securely. Double-check alignment before fully tightening for a sturdy mount.
- Ensure the pencil marks are clear and precise
- Use a steady hand for accurate drilling
- Keep the drill perpendicular to the surface
- Verify the gap before inserting screws
- Test sliding the rail before final tightening

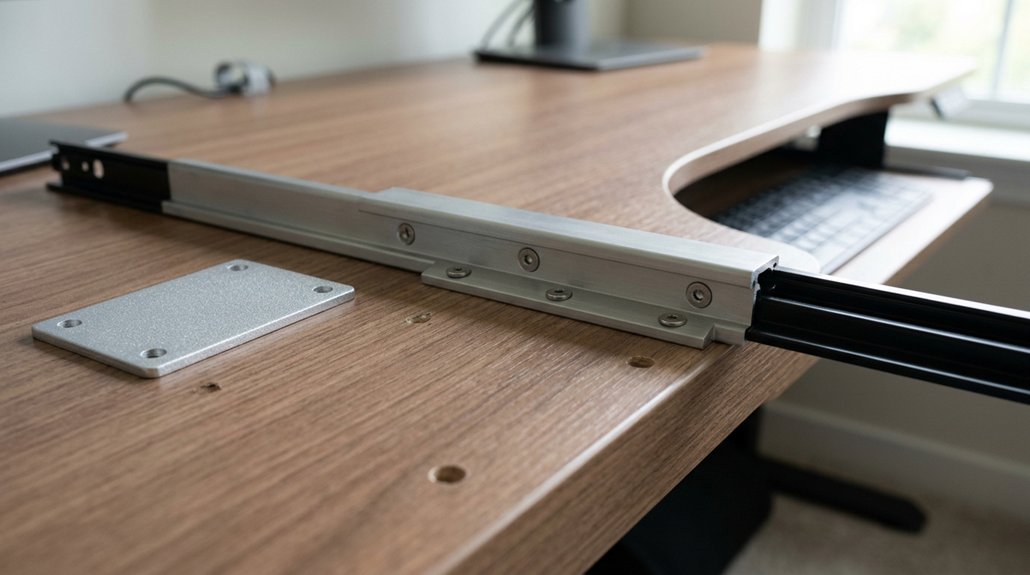

Attach Rail Plate Securely
With the pilot holes drilled and two screws partially inserted, it’s time to secure the rail plate firmly in place. Position the rail plate with bumpers facing the back, maintaining a 1.2-inch gap from the desk edge. Mark six hole locations with a pencil.
Remove the rail plate, then drill pilot holes at the marked spots using a 3/20 inch drill bit. Insert two screws into the key-shaped holes, leaving about 0.5 cm between the screw heads and the desk surface to allow sliding. Slide the rail plate onto the screws.
Once aligned, tighten all six screws completely to guarantee the rail plate is secure and properly positioned. Check for stability before proceeding with the keyboard arm installation. Proper port placement can help reduce cable clutter and improve workspace ergonomics.
Attaching the Keyboard Arm and Reinstalling the Stopper
To attach the keyboard arm securely, slide it into the attached rail plate, making sure it’s fully seated to allow smooth movement. Once inserted, reattach the front stopper onto the keyboard arm to keep it in position and prevent slipping. Secure the stopper with the two bolts you previously removed from the front end of the rail plate.
Next, verify these bolts are tightened firmly to prevent any wobbling. When attaching the keyboard tray, align it with the arm and use four bolts, tightening them securely for stability. Finally, connect the tray lever to the arm with two longer bolts and nuts underneath, enabling you to adjust height and angle easily. Be sure to confirm that the clamping mechanism is securely fastened to ensure stability during use.
- Ensure the arm is fully seated before tightening.
- Double-check bolt tightness for stability.
- Align the stopper correctly to prevent movement.
- Confirm the tray lever connects snugly.
- Test the arm’s movement after installation.

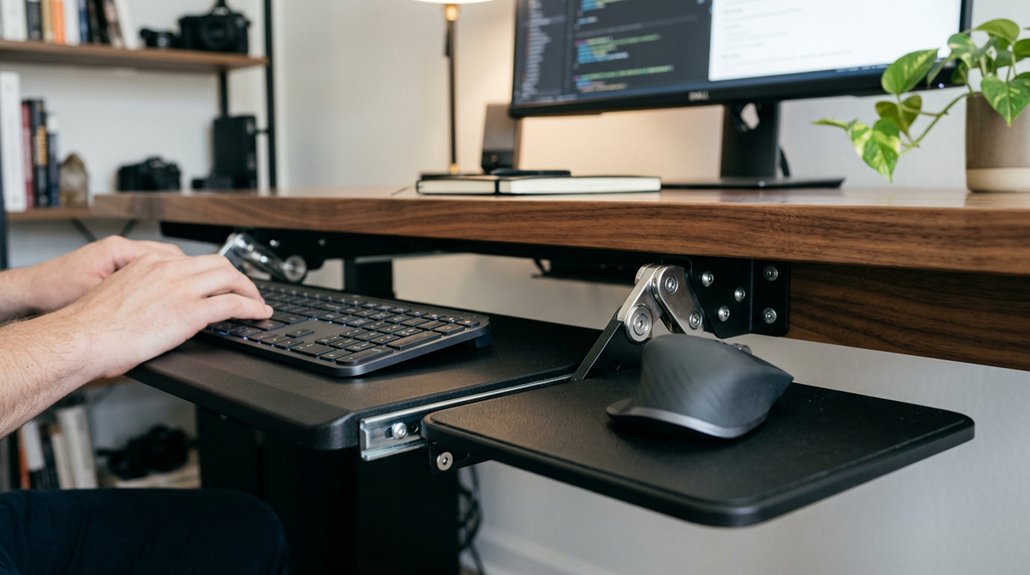

Installing and Adjusting the Keyboard Tray for Comfort
Once the keyboard tray is securely attached to the arm, you can start adjusting it for ideal comfort. Slide the tray in and out smoothly to guarantee easy access and proper clearance under your desk.
Use the lever to raise or lower the tray height until your elbows are at a 90-degree angle and your wrists stay straight. Adjust the tray angle with the lever control so your wrists and arms are aligned comfortably.
Pull the latch out to reposition the tray if needed, then press it down firmly to lock the position securely. Regularly check that all adjustment mechanisms function correctly and are locked in place. Additionally, ensure the ergonomic design features support maintaining neutral wrist and arm positions.
Proper adjustments help prevent strain and promote ergonomic comfort during long hours of use.
Finishing Touches: Adding Covers, Organizing Cables, and Placing Accessories
After securing your keyboard tray and making the necessary adjustments, finishing touches can enhance both the appearance and functionality of your setup.
Finishing touches elevate your setup’s look and performance with secure, organized, and polished details.
Start by removing the adhesive backing from the bolt covers and pressing them firmly onto each bolt for a sleek, finished look. Place the mousepad on your preferred side of the tray, ensuring it stays secure and comfortable. Attach cable management clips on both sides of the keyboard arm to keep cords organized and prevent tangling.
Use additional clips to route cables along the arm or desk, maintaining a tidy workspace. Double-check that all bolt covers and clips are securely fastened to avoid any loose components during use.
- Add bolt covers for a polished appearance
- Secure the mousepad for stability
- Attach clips on both sides of the keyboard arm
- Bundle excess cables with extra clips
- Confirm all components are firmly in place
Troubleshooting Common Keyboard Tray Installation and Operation Issues
If you encounter issues with your keyboard tray, addressing common installation and operation problems promptly can save you time and frustration.
First, check the rail alignment: verify it maintains a 1.2-inch gap from the desk’s front edge to prevent alignment issues during installation.
If the tray doesn’t slide smoothly, loosen the screws in the key-shaped holes so there’s a 0.5 cm gap before tightening, allowing proper movement.
Confirm the front stopper is securely reattached with its two bolts; this prevents the tray from sliding off.
If height or angle adjustments feel stiff, carefully use the lever and verify the latch is fully disengaged before repositioning.
Finally, organize cables with clips and confirm all bolts and connections are tight to prevent interference or instability.
Tips to Optimize Ergonomics With Your New Keyboard Tray System
To maximize comfort and reduce strain, it’s essential to optimize your keyboard tray’s placement and adjustments. Make certain the tray is positioned so your elbows form a 90-degree angle and your wrists stay straight, reducing tension.
Use the lever to adjust the height, keeping your shoulders relaxed and minimizing hunching. Place the mouse on the attached platform on your preferred side, within easy reach to prevent overextension. Finally, utilize cable management clips to prevent clutter, allowing smooth movement of the tray and mouse platform.
- Properly position your elbows at 90 degrees
- Keep wrists straight during use
- Adjust tray height for relaxed shoulders
- Tilt the keyboard slightly away from you
- Use cable clips to prevent tangles
Frequently Asked Questions
Can I Install a Keyboard Tray on a Glass Desk?
Yes, you can install a keyboard tray on a glass desk using clamps or adhesive mounting brackets designed for glass surfaces. Just make certain they are secure and won’t damage the glass, and follow the manufacturer’s instructions carefully.
What Weight Capacity Should I Consider for the Tray?
You should consider a tray with at least a 10-15 pound weight capacity for everyday use. If you plan to place heavier items, opt for a sturdy, higher-capacity tray to guarantee safety and durability during regular use.
Is It Necessary to Remove the Desk’s Existing Hardware?
Yes, you should remove the desk’s existing hardware if it conflicts with the tray’s installation points or mounting brackets. Taking out any obstructive hardware guarantees a secure fit and proper function of your new keyboard tray.
How Do I Ensure the Tray Is Level After Installation?
You confirm the tray is level after installation by using a carpenter’s level, adjusting the mounting brackets or screws until the bubble remains centered. Double-check each side for accuracy before tightening all fasteners securely.
Can This Installation Be Done Without Professional Tools?
Yes, you can install a keyboard tray mouse platform without professional tools. Use household items like a screwdriver, measuring tape, and level, carefully follow the instructions, and guarantee everything is secure and evenly aligned during installation.
